Brushed vs. Brushless Coreless DC Motors | Structural & Performance Differences

When designing high-performance miniature equipment—such as micro-robotics, medical instruments, portable beauty devices, or precision industrial actuators—selecting the right micro motor is critical. Among miniature actuation technologies, coreless DC motors stand out for their rapid acceleration, lack of cogging, and compact form factor.

However, engineers and procurement managers often face a fundamental choice: Brushed Coreless DC Motors vs. Brushless Coreless DC Motors.

In this comprehensive guide, we break down the structural differences, performance characteristics, and torque-speed behaviors to help you choose the ideal solution for your application.

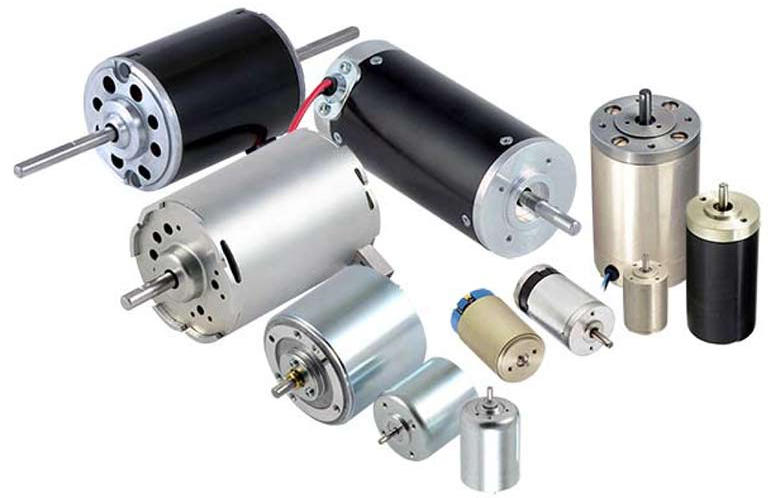

1. Structural Comparison: How They Differ

At first glance, both motor types share the core advantage of a coreless design (utilizing a self-supporting, ironless coil cup rotor rather than a traditional heavy iron core rotor). This eliminates iron losses and dramatically reduces rotor inertia. However, their commutation mechanisms set them apart:

Brushed Coreless DC Motors: Rely on mechanical commutation via graphite brushes and a copper ring commutator. The permanent magnet is located inside the cup acting as the stator.
Brushless Coreless DC Motors: Eliminate physical contact by utilizing electronic commutation. They feature an external permanent magnet cup (stator) and an internal coreless coil cup (rotor), paired with non-contact Hall Effect sensors and an external Electronic Speed Controller (ESC).

2. Performance & Characteristic Comparison

Feature / Metric	Brushed Coreless DC Motor	Brushless Coreless DC Motor
Commutation Type	Mechanical Commutation	Electronic Commutation
Operating Efficiency	Standard	Higher Efficiency
Power Density	Moderate	Greater Power Density
Lifespan & Wear	Friction & wear from brushes; Limited brush life	No mechanical friction; Longer operating life
Acoustical Noise	Produces operational noise	Quieter operation (low mechanical noise)
Drive Electronics	Simpler Drive Electronics	Requires complex ESC/Driver
Initial Cost	Lower Initial Cost	Higher Cost (Motor + ESC)

3. Understanding Torque-Speed Behavior

A vital factor in motion control design is how the motor’s output torque responds to changes in speed:

Brushed Coreless Motors (Non-linear Drop): As illustrated in standard performance curves, torque decreases non-linearly as speed increases. Starting torque is at its maximum (stall torque), dropping off as internal resistance voltage drop increases with higher rotational speeds.
Brushless Coreless Motors (Linear Rise / Controlled Output): Enabled by advanced electronic control and continuous phase switching, brushless systems typically display a linear or highly stable torque-to-speed profile within their optimal working envelope, delivering superior high-speed torque consistency without brush degradation.

4. Application Guide: Which One Should You Select?

Choose a Brushed Coreless DC Motor if:

Your project requires a cost-effective actuation solution with minimal circuit complexity.
The application operates on intermittent duty cycles where ultimate brush lifespan is not the primary limiting factor.
You need straightforward two-wire direct DC voltage control without external ESC programming.

Choose a Brushless Coreless DC Motor if:

Your application demands continuous, maintenance-free 24/7 operation with an extended operating life.
You require higher power density and superior energy efficiency in restricted spaces (e.g., advanced medical tools, high-end micro-robotics, or precision aerospace gimbals).
Your system can integrate precise electronic commutation and driver electronics.

Custom Coreless Motor Solutions from XH Motor

At XH Motor / Coreless Motor Co., Ltd., we specialize in the engineering and volume manufacturing of high-reliability micro coreless motors. Whether you need customized dimensions, specialized gearboxes, integrated encoders, or tailored electrical performance parameters, our engineering team provides end-to-end OEM/ODM support.

Explore our product range: Visit our official portfolio at Coreless Motor.
Ready to discuss your project? Contact our engineering team today for custom specifications, prototype samples, and technical drawings.
